MeshComponent Class Reference

Component wrapper of Irrlicht's IMeshSceneNode. More...

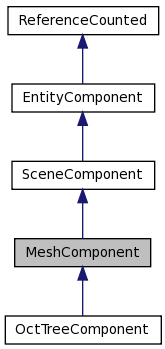

Inheritance diagram for MeshComponent:

[legend]

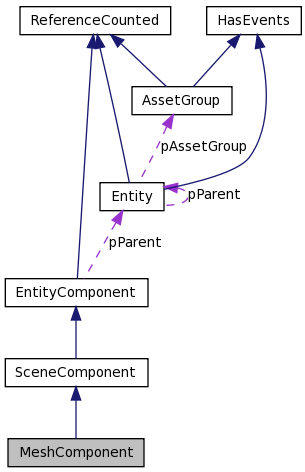

Collaboration diagram for MeshComponent:

[legend]

List of all members.

Public Member Functions
	MeshComponent (Entity *parent)
	Constructor (default).
	MeshComponent (Entity *parent, const std::string &fileName, const vector3df &scale=vector3df(1.0f, 1.0f, 1.0f))
	Constructor.
	MeshComponent (Entity *parent, IMesh *mesh, const vector3df &scale=vector3df(1.0f, 1.0f, 1.0f))
	Constructor.
	~MeshComponent ()
	Deconstructor.
IMeshSceneNode *	getMeshSceneNode ()
	Returns a direct pointer to the IMeshSceneNode.
IMesh *	getMesh ()
	Returns the current mesh.
virtual void	setMesh (const std::string &fileName)
	Loads and sets a new mesh to display.
virtual void	setMesh (IMesh *mesh)
	Sets a new mesh to display.
void	onMesh (void *p)
	Responds to changes of the mesh attached to this component.
Static Public Member Functions
static bool	parseXML (IXMLReader *file, Entity *entity)
	Parses for a MeshComponent.
static bool	parseBaseXML (IXMLReader *file, MeshComponent *component)
	Parses for the base elements of a MeshComponent.
Protected Member Functions
	MeshComponent (Entity *parent, bool isDerived)
	Constructor for derived classes.
Protected Attributes
IMeshSceneNode *	mMeshSN
std::string	mMeshFileName

---

Detailed Description

Component wrapper of Irrlicht's IMeshSceneNode.

XML:

 <MeshComponent>
    <!-- Properties -->
 </MeshComponent>

Definition at line 33 of file MeshComponent.h.

---

Constructor & Destructor Documentation

MeshComponent::MeshComponent

(

Entity *

parent

)

Constructor (default).

Parameters:

parent

The parent entity to which the component should be added.

Definition at line 23 of file MeshComponent.cpp.

MeshComponent::MeshComponent	(	Entity *	parent,
		const std::string &	fileName,
		const vector3df &	scale = vector3df(1.0f, 1.0f, 1.0f)
	)

Constructor.

Parameters:

	parent	The parent entity to which the component should be added.
	fileName	Filename of the mesh to load.
	scale	Initial scale of the mesh.

Definition at line 31 of file MeshComponent.cpp.

MeshComponent::MeshComponent	(	Entity *	parent,
		IMesh *	mesh,
		const vector3df &	scale = vector3df(1.0f, 1.0f, 1.0f)
	)

Constructor.

Parameters:

	parent	The parent entity to which the component should be added.
	mesh	Pointer to the loaded animated mesh to be displayed.
	scale	Initial scale of the mesh.

Note:

Not available in AngelScript.

Definition at line 42 of file MeshComponent.cpp.

MeshComponent::~MeshComponent

(

)

Deconstructor.

Definition at line 59 of file MeshComponent.cpp.

MeshComponent::MeshComponent	(	Entity *	parent,
		bool	isDerived
	)			[protected]

Constructor for derived classes.

Definition at line 53 of file MeshComponent.cpp.

---

Member Function Documentation

IMesh * MeshComponent::getMesh

(

)

Returns the current mesh.

Note:

Not available in AngelScript.

Definition at line 91 of file MeshComponent.cpp.

IMeshSceneNode * MeshComponent::getMeshSceneNode

(

)

Returns a direct pointer to the IMeshSceneNode.

Note:

Not available in AngelScript.

Definition at line 85 of file MeshComponent.cpp.

void MeshComponent::onMesh

(

void *

p

)

Responds to changes of the mesh attached to this component.

Note:

For internal use only!

Reimplemented in OctTreeComponent.

Definition at line 145 of file MeshComponent.cpp.

bool MeshComponent::parseBaseXML	(	IXMLReader *	file,
		MeshComponent *	component
	)			[static]

Parses for the base elements of a MeshComponent.

Note:

For internal use only!

Definition at line 206 of file MeshComponent.cpp.

bool MeshComponent::parseXML	(	IXMLReader *	file,
		Entity *	entity
	)			[static]

Parses for a MeshComponent.

Note:

For internal use only!

Reimplemented from SceneComponent.

Reimplemented in OctTreeComponent.

Definition at line 155 of file MeshComponent.cpp.

void MeshComponent::setMesh

(

IMesh *

mesh

)

[virtual]

Sets a new mesh to display.

Parameters:

mesh

Pointer to the loaded animated mesh to be displayed.

Note:

Not available in AngelScript.

Reimplemented in OctTreeComponent.

Definition at line 129 of file MeshComponent.cpp.

void MeshComponent::setMesh

(

const std::string &

fileName

)

[virtual]

Loads and sets a new mesh to display.

XML:

     <mesh fileName="" />

fileName Filename of the mesh to load.

Reimplemented in OctTreeComponent.

Definition at line 97 of file MeshComponent.cpp.

---

Member Data Documentation

std::string MeshComponent::mMeshFileName [protected]

Definition at line 101 of file MeshComponent.h.

IMeshSceneNode* MeshComponent::mMeshSN [protected]

Definition at line 100 of file MeshComponent.h.

---

The documentation for this class was generated from the following files:

• components/scene/MeshComponent.h
• components/scene/MeshComponent.cpp
